Radiologic Signs
The Largest Illustrated Collection of Imaging Signs on the Web



S

A Index

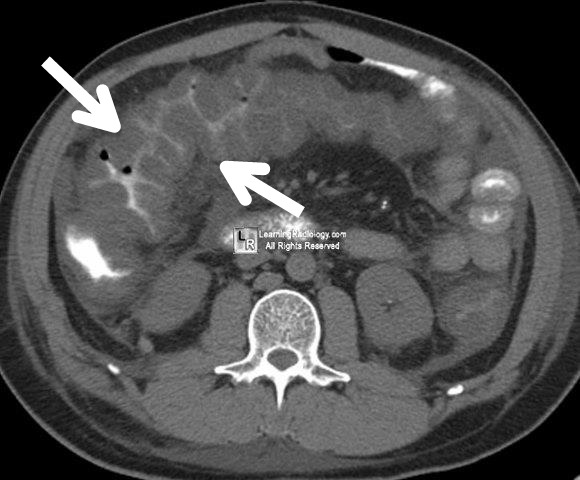

Accordion Sign-appearance of oral contrast trapped between colonic folds thickened by submucosal edema, esp in C. difficile colitis

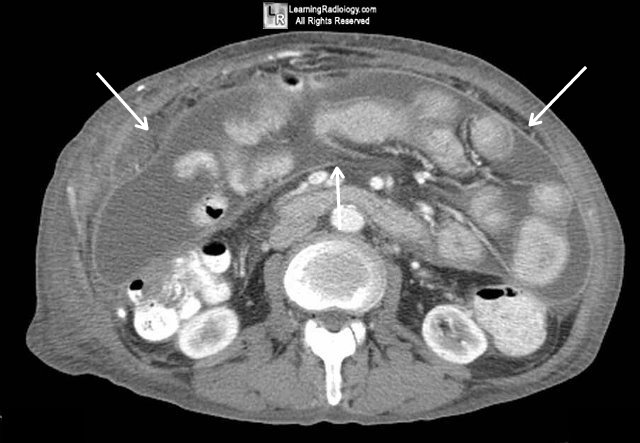

Abdominal Cocoon-AKA sclerosing encapsulating peritonitis; encasement of variable lengths of bowel by a dense fibrocollagenous membrane giving the
appearance of a cocoon

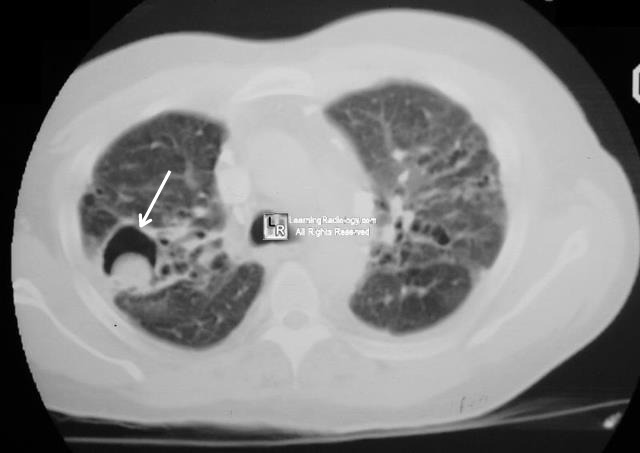

Air Crescent Sign-sickle-shaped lucency partly surrounding a mass in a pulmonary cavity on chest x-ray & CT; classically, aspergillomas

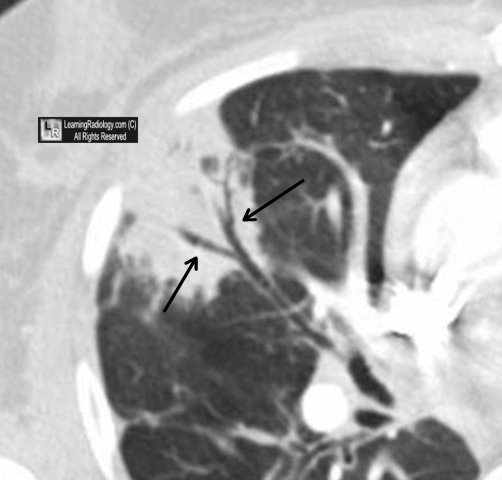

Air Bronchogram Sign-black-branching air-filled bronchi visible because of surrounding airspace disease, such as in pneumonia

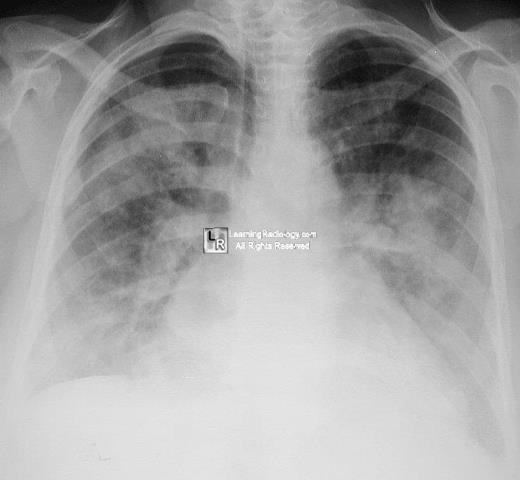

Angel Wing Appearance-AKA Bat Wing-pattern of pulmonary edema which involves perihilar regions and spares cortex of lung

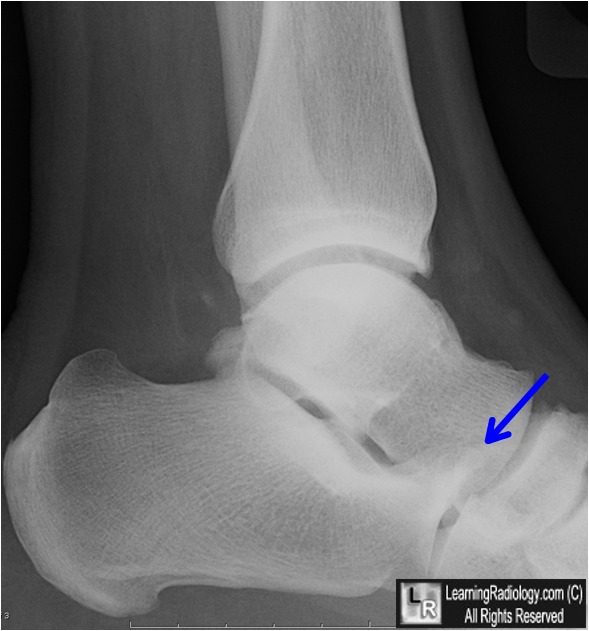

Anteater's Nose Sign-on lateral view of foot, elongated anterior, superior process of calcaneous seen in tarsal coalition

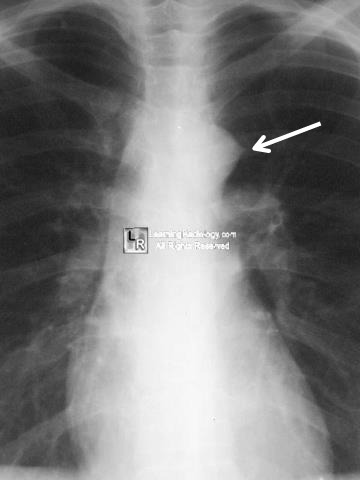

Aortic Nipple-bump caused by left superior intercostal vein as it wraps around outer edge of aorta

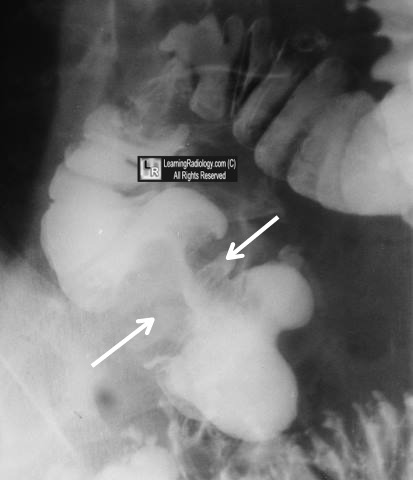

Apple Core-appearance of an annular constricting carcinoma of the bowel, usually the colon, from circumferential involvement of lumen
Acorn cyst-breast-breast-US-type of complex cyst where the echogenicity within the cyst is due to fat and protein cells; also known as Fatty Cyst

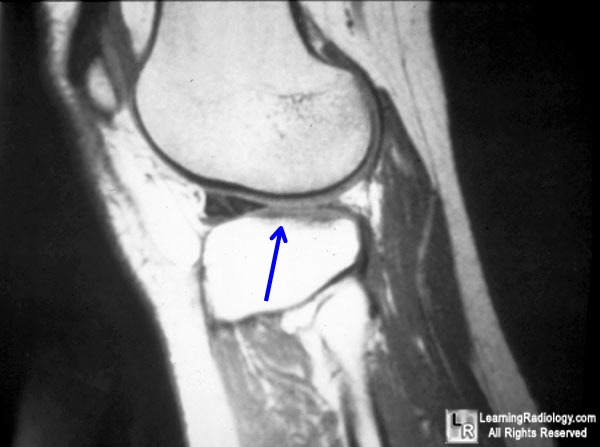

Absent Bow-Tie Sign-absence of normal bow-tie appearance of meniscus on sagittal MRI of knee in bucket handle tears

Mouse over to enlarge image where available
