Tuberculosis

History

•“White plague”, “Consumption”

•Tuberculous changes in mummy spines

•460 BC - Hippocrates describes “phthisis” as most commondeadly disease.

•1720 - infectious nature of disease described

•1859 - sanatorium therapy

•1882 - tubercle bacillus identified by Koch

•1894 - artificial ptx- earliest plombage therapy

History

–At the beginning of the 20th century

•Leading cause of death of adults in US

•1 of 7 deaths in US and Europe

–1921 - BCG vaccine introduced

•Attenuated form of M. bovis

•Antibiotics

–1944 - streptomycin

–1949 - p-amino salicylic acid

–1952 - isoniazid

–1962 - ethambutol

–1963 - rifampin

thoracoplasty.jpg 00000002LEXAR_MEDIA 00000000:

PA.JPG 00000002LEXAR_MEDIA 00000000:

TB therapy c. 1940

Tuberculosis Worldwide

•2 billion people infected

•2 million deaths / year

•95% of cases in developing countries

•Highest incidence in Asia (40% of cases)

–SE Asia: 237/100K

–Subsaharan Africa: 191/100K

–US: 5.2/100K (2002)

•Incidence increasing in eastern Europe and Africa

•HIV, MDR TB worsening problems

–MDR incidence 48% in Nepal

world-map.gif 00027658Macintosh HD BA578DA3:

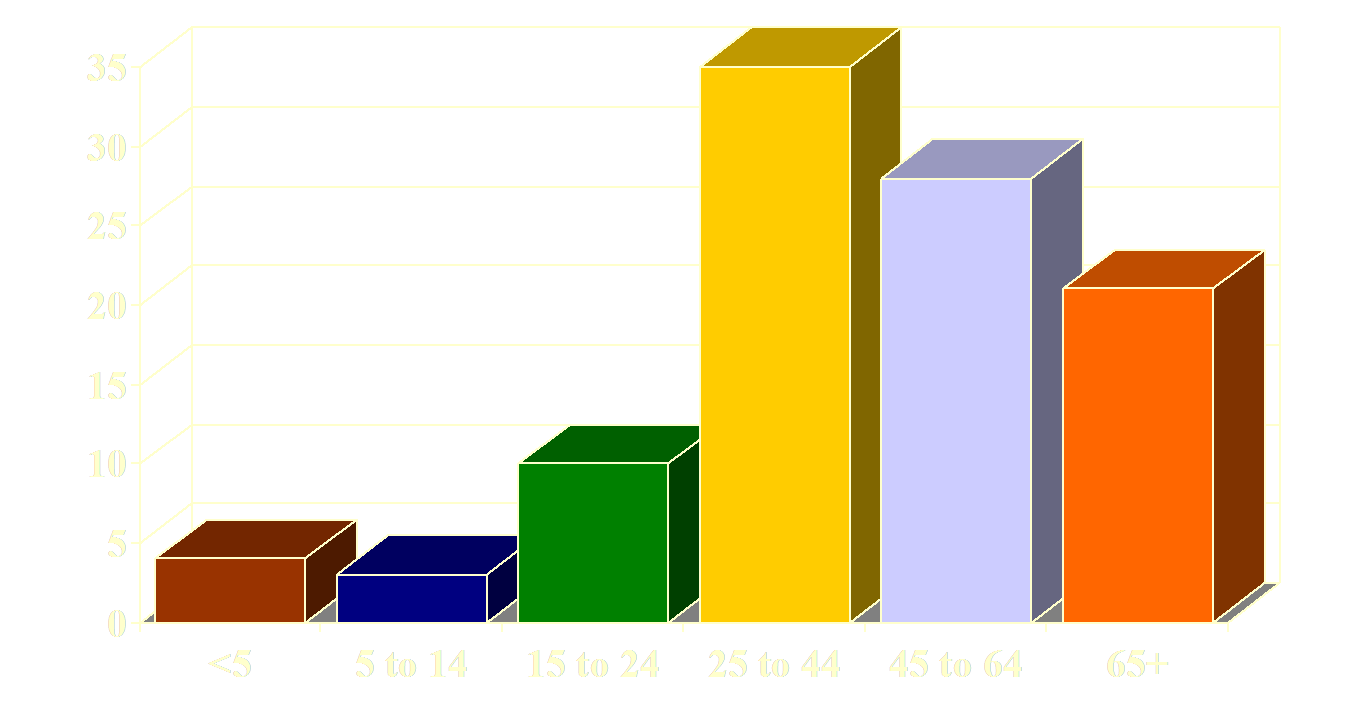

Tuberculosis 2002

Incidence in US per 100,000 population

Tuberculosis 2002

Significant decline among all racial groups

Tuberculosis in PA

•Overall rate 2.8/100K, 1/2 of US rate

–Philadelphia 9.5/100K (41% of PA cases)

–44% foreign born, similar to US rate

–9.4% INH resistant

–2.3% multidrug resistant

–Racial rates similar to US except:

•Asians 37.2/100K

•AEMC ~10 cases/year

TB in Foreign Born Americans

$C:\Documents and Settings\guttenta\Desktop\Slide11_small.jpeg$

$C:\Documents and Settings\guttenta\Desktop\Slide12_small.jpeg$

$C:\Documents and Settings\guttenta\Desktop\Slide16_small.jpeg$

Tuberculosis 2002

Tuberculosis 2002Sites of Disease

Tuberculosis 2002Extra-pulmonary Locations

Mycobacterium tuberculosis

•Obligate aerobe

•Thick waxy lipid cell wall

–High resistance to drying, acid, alkali.

–Remains alive for long periods outside or intracellular.

•Retains carbol- fuschin stain on acid wash (acidfast)

–Also other mycobacteria, Nocardia, Rhodococcus,Corynebacterium sp.

Infection

•Droplet nuclei (1-5 microns)

–May be suspended in air for hours.

•Transmission of infection to 21-23% of closecontacts.

•Transmission to a close contact depends on:

–Duration of exposure

–Local environment

•Ventilation

•Crowding

–Number of organisms expelled into air

–Virulence of organisms

Infection

•Larger droplets deposited on airway mucosa,expectorated or swallowed.

•Smaller droplets deposited in alveoli

–Infection develops in lung, and in regional lymphnodes.

–Systemic dissemination of bacilli.

•Delayed immune response (2-10 weeks)

–Cell mediated immunity - mkills bacillus

–Delayed hypersensitivity - necrotizing granuloma

–PPD conversion

–Confers resistance to later infection.

Alveolar

M

Virulence andgeneticsusceptibilityvs. bactericidalactivity of m

Droplet inhaled into alveolus

Pathogenesis

Granulomaformation,Latent infection

CellMediatedImmunity

Regional lymphnodes and beyond

$G:\photos\infection\Tuberculosis\splenic and liver granulomas.JPG$

Pulmonary Tuberculosis

•Primary Infection

•Progressive Primary TB

•Latent TB Infection

•Postprimary TB

•Miliary TB

95%

5%

30%

Primary TuberculosisClinical Sx

•Children:

–Primary infection usually Asx or unrecognized

–Of young PPD converters:

•~40% had nonspecific fever, cough

•>90% clinically well

•75% with normal CXR

•<10% develop clinically apparent TB

Primary TuberculosisClinical Sx

•Adults

–>80% with clinical sx at primary infection

•Fever (40%)

•Cough

•Weight loss

•Hemoptysis

–Children and elderly likely to have atypicalpresentation

Primary InfectionRadiology

•Lymphadenopathy

–Prevalence decreases with age.

•100% in young children.

•10% in older adults.

–Right paratracheal most common.

–Low attenuation center of large LN’s.

–May be only abnormality in children (1/3).

–Rare to have no adenopathy in children .

–Common in severe HIV disease (CD4 <200/mm3).

Primary InfectionRadiology

•Parenchymal disease

–Usually consolidation

•Segmental or lobar

•Right side most common, based on granulomalocation

•Airway obstruction causing atelectasis or airtrapping more common in children

–Smaller airways, less stiff cartilage, more LAD.

–Delayed hypersensitivity response causescaseous necrosis and granuloma formation.

$G:\photos\infection\Tuberculosis\primary TB RML consol\pa .JPG$

$G:\photos\infection\Tuberculosis\primary TB RML consol\lat.JPG$

Primary Infection

•Healing of primary focus

–Ghon focus in lung

–Ranke complex - calcifiedlung focus and hilar ormediastinal LN

–Dystrophic Ca++ may formin caseous material

–Surrounded by fibrosis

Ca++ gran reg tech.jpg 00000002LEXAR_MEDIA 00000000:

Ca++ gran CT.jpg 00000002LEXAR_MEDIA 00000000:

Pleural Effusion

•More common in primary infection

–Seen 3-6 months following exposure.

–29-38% of adults, uncommon in children.

–Typically unilateral on side of 10 infection.

–Only sign of disease in 5%.

–May precede appearance of parenchymal lung disease.

•Less common in postprimary disease

•Pleural fluid culture (+) in 20-40%

•Closed pleural Bx (+) in 65-75%

•True empyema--smears and cx usually positive

•Empyema necessitans

$G:\photos\infection\Tuberculosis\tuberculous effusion\pa.jpg$

$G:\photos\infection\Tuberculosis\tuberculous effusion\ct1.jpg$

$G:\photos\infection\Tuberculosis\tuberculous effusion\ct2.jpg$

$G:\photos\infection\Tuberculosis\tuberculous effusion\ct3.jpg$

$G:\photos\infection\Tuberculosis\primary RUL, eff\pa1.JPG$

$G:\photos\infection\Tuberculosis\primary RUL, eff\lat.JPG$

$G:\photos\infection\Tuberculosis\primary RUL, eff\pa1close.JPG$

$G:\photos\infection\Tuberculosis\primary RUL, eff\pa 2.JPG$

$C:\Documents and Settings\guttenta\Desktop\new pix\new pix 014.jpg$

$C:\Documents and Settings\guttenta\Desktop\new pix\new pix 015.jpg$

$C:\Documents and Settings\guttenta\Desktop\new pix\new pix 016.jpg$

$C:\Documents and Settings\guttenta\Desktop\new pix\new pix 017.jpg$

Progressive Primary TB

•Disease not contained by delayed immunity.

•Progressive parenchymal destruction at siteof initial infection.

•Appearance similar to postprimary disease.

$G:\photos\infection\Tuberculosis\TB disseminated in AIDS\TB disseminated AIDS cxr.jpg$

AIDS Patient

$G:\photos\infection\Tuberculosis\TB disseminated in AIDS\TB disseminated AIDS nodes.jpg$

$G:\photos\infection\Tuberculosis\TB disseminated in AIDS\TB disseminated AIDS nodules2.jpg$

$G:\photos\infection\Tuberculosis\TB disseminated in AIDS\TB disseminated AIDS nodules.jpg$

$G:\photos\infection\Tuberculosis\TB disseminated in AIDS\TB disseminated AIDS spleen.jpg$

Latent TB Infection

•+ PPD

•Patient asymptomatic

•No progressive inflammation and tissue necrosis

•Organisms inside caseating granulomas

•Organisms remain viable for many years

$G:\photos\infection\Tuberculosis\Ranke complex\pa.JPG$

$G:\photos\infection\Tuberculosis\Ranke complex\lat.jpg$

Postprimary (Reactivation) TB

•Active infection months to yearsafter initial infection.

•Formerly great majority of adultcases:

–In past, most were infected as children,reactivated as adults.

–Now, only about 60% of adult cases inUS.

Postprimary (Reactivation) TB

Risk factors forreactivation:

•HIV•HIV

•Diabetes

•Recent infection

•Steroids and otherimmunosupressives

•Silicosis

•Hematologic malignancy

•ESRD

•Low body weight

Postprimary (Reactivation) TB

•Can occur in any organ, most common in lungs.

•Upper lobes (apical and posterior segments) in85%.

•Superior segments of lower lobes in 12%.

–Higher O2 tension.

–Less lymphatic drainage.

Postprimary (Reactivation) TBProgression

PO2 locally acidic caseous material

 # of organisms

Organisms enterbronchial tree

Spread to other parts oflungs and bronchial tree

Infectivity

Active infection

Cavity formation

Postprimary (Reactivation) TB

•Once infection becomes active again:

–Form of disease depends on host response vsvirulence of organism.

–Outcomes:

•Cavity formation with spread of infection

–Progressive destruction of lung tissue

–“galloping consumption”

•Tuberculoma formation

–Masslike infection without cavitation

•Healing with fibrosis and calcification

Postprimary (Reactivation) TBRadiology

•Heterogeneous opacities whichcan coalesce.

•Cavitary disease in 45%.

–Thick or thin walls

•Tuberculoma (up to 4 cm) mayhave Ca++

–Non-cavitary focus of disease.

–Usually sharply defined.

–May be more indolent disease.

•Satellite nodules helpful in dx.

$G:\photos\infection\Tuberculosis\TB LUL cavity faint RUL nodule\LAO.JPG.JPG$

$G:\photos\infection\Tuberculosis\TB lockerby\cxr jan 01.JPG$

$G:\photos\infection\Tuberculosis\TB lockerby\cxr close jan 01.JPG$

$G:\photos\infection\Tuberculosis\TB LUL cavity faint RUL nodule\pa.JPG$

$G:\photos\infection\Tuberculosis\TB LUL cavity faint RUL nodule\RAO.JPG$

$G:\photos\infection\Tuberculosis\TB LUL cavity faint RUL nodule\LAO.JPG.JPG$

$G:\photos\infection\Tuberculosis\TB LUL cavity faint RUL nodule\lordotic.JPG$

Additional views may help evaluate disease

Postprimary (Reactivation) TBRadiology

Endobronchial spread:

–5-10 mm nodules seen in up to20% on CXR

–Nodules seen in 95% on HRCT

–“Tree in bud”

•Clustered small centrilobular nodules

•“Jacks” and y-shaped nodules indicateimpacted bronchioles.

$G:\photos\infection\Tuberculosis\TB Sok HRCT T-I-B\pa.JPG$

$G:\photos\infection\Tuberculosis\TR T-I-B HRCT\ct3.JPG$

Progressive TB

•Progressive destruction of lung tissue

–Necrosis and cicatrization

–Bronchiectasis

•Respiratory insufficiency as more lung is destroyed

•Hemoptysis

–Bronchiectasis

–Rasmussen’s aneurysm

•5 year mortality from untreated TB ~50%

$G:\photos\infection\Tuberculosis\TB LUL collapse LLL cavity\pa.JPG$

$G:\photos\infection\Tuberculosis\TB LUL collapse LLL cavity\lat.JPG$

$G:\photos\infection\Tuberculosis\TB LUL collapse LLL cavity\ct1.JPG$

$G:\photos\infection\Tuberculosis\TB LUL collapse LLL cavity\ct2.JPG$

$G:\photos\infection\Tuberculosis\TB LUL collapse LLL cavity\ct3.JPG$

$G:\photos\infection\Tuberculosis\TB LUL collapse LLL cavity\ct4.JPG$

$H:\Dr. Guttentag\tree in bud willie thomas\hrct1.jpg$

$G:\photos\infection\Tuberculosis\TB drug resistant India\pa.JPG$

Multidrug resistant TB - India

$G:\photos\infection\Tuberculosis\TB clavicle sign\TB clav sign RUL PA.jpg$

TB can mimic cancer

$G:\photos\infection\Tuberculosis\TB clavicle sign\TB clav sign RUL CT lung 1 .jpg$

$G:\photos\infection\Tuberculosis\TB clavicle sign\TB clav sign RUL CT med1 .jpg$

$G:\photos\infection\Tuberculosis\TB clavicle sign\TB clav sign RUL CT lung 2 .jpg$

$G:\photos\infection\Tuberculosis\TB clavicle sign\TB clav sign RUL CT lung 3 .jpg$

$G:\photos\infection\Tuberculosis\RUL reactivation simulates Ca\pa.JPG$

$G:\photos\infection\Tuberculosis\RUL reactivation simulates Ca\ct1.JPG$

$G:\photos\infection\Tuberculosis\RUL reactivation simulates Ca\ct2.JPG$

$G:\photos\infection\Tuberculosis\RUL reactivation simulates Ca\ct3.JPG$

$G:\photos\infection\Tuberculosis\RUL reactivation simulates Ca\ct4.JPG$

$C:\Documents and Settings\guttenta\Desktop\new pix\new pix 020.jpg$

$C:\Documents and Settings\guttenta\Desktop\new pix\new pix 021.jpg$

$C:\Documents and Settings\guttenta\Desktop\new pix\new pix 022.jpg$

$C:\Documents and Settings\guttenta\Desktop\new pix\new pix 023.jpg$

RUL wedge resection: caseating granulomas and AFB’s

$G:\New Folder\TB 42 yo asxdawson\pa .jpg$

$G:\New Folder\TB 42 yo asxdawson\lat .jpg$

Asymptomatic 42 yo

$G:\New Folder\TB 42 yo asxdawson\ct1.jpg$

$G:\New Folder\TB 42 yo asxdawson\ct2.jpg$

$G:\New Folder\TB 42 yo asxdawson\ct3.jpg$

$G:\New Folder\TB 42 yo asxdawson\ct4.jpg$

Postprimary (Reactivation) TB

•Lymphadenopathy unusual.

–5% of cases.

•Effusion uncommon.

–Up to 18% of cases.

–Air indicates bronchopleural fistula.

•Rupture of adjacent parenchymal focus.

–Often loculated.

–May form tuberculous empyema.

–Calcified fibrothorax (may have active organisms).

pleural Calc unilat.jpg 00000002LEXAR_MEDIA 00000000:

$G:\photos\infection\Tuberculosis\pleural cloak.JPG$

Miliary TB

•Lymphohematogenous spread toentire body.

•Occurs during primary infectionor reactivation.

•CXR abnormality takes 3-6 weeksto develop.

•25-40% with normal CXR.

•Diffuse distribution with slightbasilar predominance.

•1-4 mm nodules, uniform in size.

$G:\photos\infection\TB miliary CT.jpg$

$G:\photos\infection\Tuberculosis\millet_seeds.gif$

Millet seeds

Miliary TB

•Patient usually elderly, chronically ill

–HIV, ESRD, DM, EtOH

•Insidious onset

–Delayed diagnosis

–Nonspecific sx

•Cough, low grade fever, night sweats, wt loss

•Hepatospenomegaly

•PPD (-) in 25-50%

•Liver or bone marrow bx may establish dx

$G:\photos\infection\Tuberculosis\TB cavitary with miliary spread\pa.JPG$

$G:\photos\infection\Tuberculosis\TB cavitary with miliary spread\DSCN0022(8).JPG$

$G:\photos\infection\Tuberculosis\TB cavitary with miliary spread\DSCN0024(7).JPG$

$G:\photos\infection\Tuberculosis\miliary champion 82 yo\ct1.JPG$

$G:\photos\infection\Tuberculosis\miliary champion 82 yo\ct2.JPG$

$G:\photos\infection\Tuberculosis\miliary champion 82 yo\ct3.JPG$

$G:\photos\infection\Tuberculosis\miliary champion 82 yo\ct4.JPG$

Miliary or Tree in Bud?

$G:\photos\infection\Tuberculosis\TB cavitary with miliary spread\DSCN0024(7).JPG$

$G:\photos\infection\Tuberculosis\TB Sok HRCT T-I-B\pa.JPG$

Miliary or Tree in Bud?

•Random

•Diffuse

•Only nodules

•Clusters

•Areas of sparing

•Jacks and Y’s

$G:\photos\infection\Tuberculosis\TB Sok HRCT T-I-B\ct2.JPG$

$G:\photos\infection\Tuberculosis\miliary champion 82 yo\ct1.JPG$

Active or Inactive Disease?

•Calcifications and fibrosis, even cavities are seenon CXR in both healed and active disease.

•CXR is usually not helpful unless findings arestable.

•“Tree in bud” nodules may be helpful.

•Diagnosis still requires isolation from sputum orbronchial washings.

$C:\Documents and Settings\guttenta\Desktop\new pix\old TB bilat apices\pa .JPG$

$C:\Documents and Settings\guttenta\Desktop\new pix\old TB bilat apices\lul close.JPG$

$C:\Documents and Settings\guttenta\Desktop\new pix\old TB bilat apices\rul close.JPG$

82 year old Korean man with cough

$G:\photos\infection\Tuberculosis\TB cavity with scar\ct1.JPG$

$G:\photos\infection\Tuberculosis\TB cavity with scar\ct2.JPG$

$G:\photos\infection\Tuberculosis\TB cavity with scar\ct3.JPG$

$G:\photos\infection\Tuberculosis\TB cavity with scar\ct4.JPG$

Cavity, bronchiectasis, fibrosis. Active disease?

Diagnosis

•Positive culture

–Standard cx 3-6 weeks

–Newer system 2-3 weeks

–DNA probe identifies TB inhours from culture specimen.

•Clinical and radiologicalevidence of active disease

•Acid fast organisms insputum or histologicspecimen

Slide50.jpg 00027658Macintosh HD BA578DA3:

TreatmentLatent Disease

•+PPD, no signs of clinical disease.

•Decision to treat depends on:

–Age

–Size of reaction

–Recent contact?

–Immune status

•If normal CXR, 6-9 mo INH.

•If CXR shows old disease or immune compromised, 9 mo INH.

•Follow up CXR usually only if sx develop.

•<2% lifetime risk of active disease developing after Rx.

TreatmentActive Disease

•First line therapy

–INH, rifampin, ethambutol, pyrazinamide x 2 mo.

–then INH, RIF x 4 mo.

•Second line drugs

•cycloserine, ethionamide, streptomycin, amikacin,capreomycin, p-amino salicylic acid, levofloxacin

•Response: >80% cx-negative after 2 mo.

•  risk of relapse: cavitary disease, (+) cx at 2 mo.

–Extend therapy to 9 mo.

$G:\photos\infection\Tuberculosis\RUL TB healing\pa sept.JPG$

$G:\photos\infection\Tuberculosis\RUL TB healing\pa sept close.JPG$

$G:\photos\infection\Tuberculosis\RUL TB healing\pa nov.JPG$

$G:\photos\infection\Tuberculosis\RUL TB healing\pa feb.JPG$

The End

Tuberculosis

Adam Guttentag M.D.

10/03
