Imaging in PelvicInflammatory Disease:Ultrasound and CT
Mindy M. Horrow, MD, FACR, FAIUM
Director of Body Imaging
Albert Einstein Medical Center
Clinical Associate Professor of Radiology
Thomas Jefferson University School of Medicine
All photos retain the copyrights of their original owners
© Mindy Horrow, MD
Learning Objectives
Describe the variety of sonographicappearances of the abnormal fallopiantube in PID
Differentiate between findings of acuteand chronic PID by ultrasound
Describe the primary and secondaryfindings of PID on CT and how itcomplements ultrasound
Background
In 1990, costs of acute infection estimated at$4.24 billion with 200,000 hospitalizations and1,277,700 outpatients
Since then hospitalizations have decreased25% with slight increase in outpatient visits
Recent estimates are of 780,000 new cases ofacute PID annually
Study in 2004 found 4.2% incidence ofchlamydial infection in young adults
Cost of PID stems from chronic sequelae withaverage per person lifetime cost ranging from$1,060 to $3,180
Background
Chronic sequelae includeinfertility, ectopic pregnancy,chronic pelvic pain
Risk factors related to exposure toSTDs: earlier age first intercourse,multiple partners, prior STD,vaginal douche, race
Pathophysiology
Most cases caused by Neisseriagonorrhoeae and/or Chlamydia trachomatis
Other organisms: streptococcus, E. coli, H.influenza, Bacteroides, Peptostreptococcus
Initial lower genital infection which ifuntreated ascends into uterus, aided bycervical ectopy and menstruation (mucusplug expelled)
After transient endometritis, may causetubal inflammation with adhesions andobstruction, spread to peritoneum andovary
Diagnosis of PID
In 50% clinical sx are insufficient for dx
Combination of fever, severe pain,leukocytosis, ESR is specific but notsensitive
Clinical dx confirmed at laparoscopy inonly 67%
Endometrial bx has 90% sensitivity andspecificity compared to laparoscopy
Molander, Ultras ObGyn 17:233-238, 2001
Ultrasound
Frequently used, but no large trials ofsensitivity and specificity
Probably insensitive for mildabnormalities and non-specific for somefindings
Review of literature showssensitivity/specificity depends uponfindings considered to indicate PID,quality of equipment and imager.Trans-vaginal imaging most useful
Sonographic Findings: Subtle
Uterus- enlarged, fluid in endometrium,indistinct borders.  Not very sensitive andoften difficult to appreciate
Free fluid- not a discriminatory finding insmall to moderate amounts
Ovaries- enlarged with multiple smallcysts (overlaps with normal ovaries)
Cacciatore, Obstet Gyn 80:912, 1992
Patten, JUM 9:681,1990
PID Pictures from slides 015
PID Pictures from slides 018
Sagittal uterus             6/16                                    6/23
Indistinct borders and EMS          Normal definition
PID Pictures from slides 001
PID Pictures from slides 002
PID Pictures from slides 003
PID Pictures from slides 004
Sagittal             3/3                            Transverse                3/3
                         3/7                                                                 3/7
Comparison of amount and appearance of fluid, ovarian
 size and borders

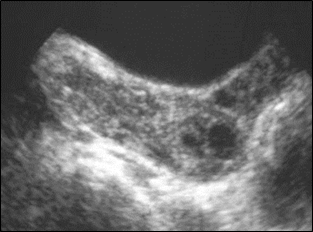

Polycystic-like ovaries
Multiple small cysts in an enlarged ovary
With endometrial bx proven plasma cellendometritis as marker for PID, 13/13(100%) with and 11/38 (29%) withoutpositive biopsy had polycystic ovaries, (P< .05)
Proposed mechanism- oophoritis causesinflammation and edema, increasingstroma and size and number of cysts
Cacciatore  Obstet Gyn 1992; 80:912
PID Pictures from slides 030

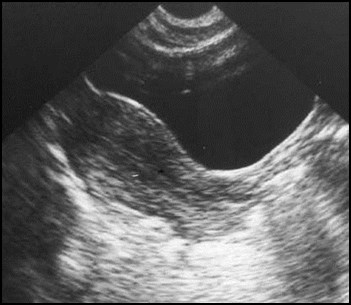

Volume of left ovary 28cc with adjacent
Thickened tube
tube
Fallopian Tubes
Sonographic demonstration of abnormaltube is hallmark of PID
Findings classified as acute or chronic
May involve ovary in complex or abscess
Acute salpingitis- mild dilatation, minimalif any fluid
Pyosalpinx or hydrosalpinx- moredilatation
Understanding types of abnormalitieshelps improve scanning
Fallopian Tubes
Best marker for acute or chronicsalpingitis is ovoid fluid filled structurewith incomplete septum- linear,echogenic protrusion arising from onewall but not reaching the opposite
Thick wall ( 5mm) and “cogwheel” signare best markers for acute disease
Thin wall (< 5mm) and “beads on string”indicates chronic disease
Other findings: tubular, “solid” structureseparate from ovary, fluid/debris level,gas
Timor-Tritsch Ultra Obstet Gyn 1998; 12:56
beads on a string
Normal tube
obstructed tube
cogwheel
         Normal tube                              “Cogwheel sign”
     Kinked, fluid filled tube           “Beads-on-string” sign
Timor-Tritsch Ultra Obstet Gyn 1998; 12:56
PA050044
Normal Fallopian tube outlined by blood from rupturedhemorrhagic cyst
PID Pictures from slides 007
PID Pictures from slides 011
Elongated, solid tubular structures that are separatefrom ovaries.  No incomplete septum or cogwheelsign because there is no fluid within tube
Acute Salpingitis
Molander, US Obstet Gyn 2001;17:233
PID Pictures from slides 060
PID Pictures from slides 032

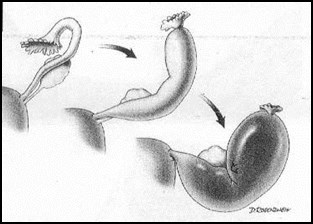

Incomplete Septum Sign
Tube distends and folds upon itself creating anincomplete “break” which appears as the septum

     Chronic                                    Acute
DSCN0004
DSCN0005
History of PID 8 years ago, now withchronic pain
Hydrosalpinx with “beads-on-string”
          Coronal                                             Sagittal
Ovary
Martin, D
Examples of “Cogwheel Sign”
cross section of thick walled tube appears assonolucent wheel shaped structure
Hall, A
             Acute salpingitis                                          Pyosalpinx
PID Pictures from slides 035
   Path specimen demonstrating cogwheel sign
PID Pictures from slides 023
PID Pictures from slides 027
Coronal                                                    Sagittal
Thick walled tubular structure with fluid/debris level =pyosalpinx
PA050039
PA050040
PA050038
PA050038
Bilateral Pyosalpinges
Left
Right
PID Pictures from slides 017
PID Pictures from slides 019
PID Pictures from slides 016
Tubo-ovarian complex: occluded, inflamed tubeadheres to ovary
O
O
PID Pictures from slides 021
PID Pictures from slides 056
Tubo-ovarian Abscess
Acutely ill patient with marked tenderness, Conglomerate oftissues in which separate tube and ovary cannot bedistinguished
Lloyd, C
Lloyd, C
Lloyd, C
Lloyd, C
Bilateral tubo-ovarian abscesses with gas
Right                                                             Left
Hall, A
Hall, A
Doppler in PID
In acute PID, generalized hyperemia with lowresistance flow, though PI and RI overlap withchronic PID
Molander, US Obstet Gyn 2001; 17:233
Tepper, J Clin US 1998; 26:247
PA170036
PA170037
Increased color Doppler with low resistanceindicates acute PID with pyosalpinx
PA170038
PA170039
Chronic right pelvic pain, history of PID
Sag ROV
Trv ovaries
PA170040
PeritonealInclusion Cyst
Sonography of PID with Tx
Complex fluid and inflammation canresolve in a few days.
Pyosalpinx can change to hydrosalpinxand possibly resolve over few weeks tomonths
Study of Taipale,etal found 9 of 55 pts withclinical PID and initial normal sonogramdeveloped a hydrosalpinx over time.
If a pyosalpinx does not resolve ordevelops into a hydrosalpinx, probablysignifies an incompletely treated infection
Taipale, etal US Obstet Gynecol. 1995;6;430
CT Findings in Acute PID
Early: thickening of utero-sacralligaments, haziness of pelvic fat.Thickened tubes, enlarged enhancingovaries, increased endometrialenhancement with fluid
Advanced: Pyosalpinx, tubo-ovarianabscess
Adjacent structures: ileus,hydonephrosis, Fitz-Hugh-Curtissyndrome (inflammation of right upperquadrant)
DSCN0003
DSCN0002
25 year old with fever, wbc= 40,000, acute renalfailure and signs of peritonitis
Only abnormality on CT: haziness of fat in pelvis
Surgery revealed PID
Enlarged ovaries, inflammation
LUQ peritonitis, no pyelo or initially dx
CT in patient with left flank pain and possible pyelonephritis
Enlarged ovaries due to oophoritis and peritonealinflammation extending along left flank, normal kidneys

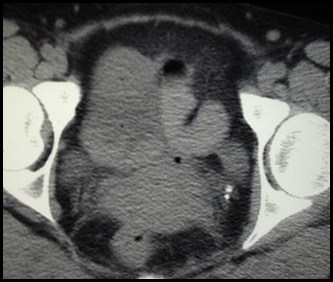

Bates severe PID bilat hydo, CT-1
Bates severe PID bilat TOAs, CT-2
Bates severe PID bilat TOA, CT-3
Hazy fat, hydronephrosis, TOAs, fluid, ileus
Rivers, A
 Inflammation and bilateral tubo-ovarianabnormalities
Rivers, A
Rivers, A
Trans-abdominal and trans-vaginal images in same patient
Increased prominence and echogenicity of surroundingfat on ultrasound corresponds to  hazy pelvic fat on CT
Rivers, A
Rivers, A
Bilateral tubo-ovarian complexes
T
T
Fitz-Hugh Curtis Syndrome
Right upper quadrant pain and “perihepatitis”associated with PID
Thickening of right anterior pararenal space onultrasound.  (9 cases)
Enhancement of anterior surface of liver on CT(single case)
Pericholecystic inflammation and transienthepatic perfusion abnormality on CT (singlecase)
Schoenfeld, JCU 1992; 20:339
Tsubuku, JCAT 2002; 26:456
Pickhardt, AJR 2003; 180:1605
PID Pictures from slides 061
PID Pictures from slides 065
PID Pictures from slides 069
PID Pictures from slides 072
Delayed GB visualization
At three hours
Normal gallbladder US
PID on pelvic US
PA050042
PA050043
Acute right sidedabdominal pain
Fluid in Morrison’s pouch and around the liver, hyperenhancement of gallbladder wall
Hawkins Bilat pyosalping, CT
Bilateral pyosalpinges
PID with FHC Syndrome
PID “Look-a-likes”
Alternative diagnoses
PA050032
Right lower quadrant pain
Pyosalpinx vs. Appendicitis
Tube orappendix?
PA050033
PA050035
PA050036
Uterus
Appendicitis
PID Pictures from slides 041
PID Pictures from slides 045
Appendiceal Abscess
DSCN0026
DSCN0027
DSCN0028
63 year old woman with right lower quadrantpain and elevated white blood cell count
DSCN0030
DSCN0031
DSCN0029
Perforated Appendicitis with right pyosalpinx and pyometra
PA050001
PA050004
Non-pregnant patient with left lower quadrant pain,interpreted as dilated left tube with free fluid c/w PID
 L                                             R
  Ruptured left corpus luteal cyst
PB010005
PB010006
PB010007
PB010008
Right adnexal pain, no fever or wbc
Ruptured Hemorrhagic Cyst
PID Pictures from slides 049
37 year old with IUD and left sided paindiagnosed as TOA and treated medically
April
U
PID Pictures from slides 042
PID Pictures from slides 046
 Returned in August with pus draining from skin

Diverticular abscess with
colo-cutaneous fistula
PID Pictures from slides 043
PID Pictures from slides 054
PID Pictures from slides 047
PID Pictures from slides 040
           Transverse                          Sagittal
PID Pictures from slides 044
PID Pictures from slides 048
Pelvic varices in patient with portal HTN
   Pelvic varices to IMV             IMV to portal vein
Portal phase images from SMA injection
Conclusions
Use transvaginal ultrasound as primaryimaging modality, sometimes withtransabdominal for overview of pelvis  andto evaluate for associated abnormalities.Doppler of limited help.
Be aware of variety of appearances ofabnormal fallopian tubes in both acute andchronic PID.  Careful scanning will allow oneto make specific diagnosis (salpingitis,pyosalpinx, etc.)
Tukeva, etal. Radiology 1999;210:209)
CT ordered more frequently because ofincreased use in ER for abdominal pain.  Ifthere is no specific abnormality, but justgeneralized haziness of pelvic fat andthickening of ligaments, think PID
? Use of MR
Tukeva, etal. Radiology 1999;210:209)
Conclusions
The End
