CT of Urinary Trauma
Mindy M. Horrow, MD, FACR, FSRU
July 15, 2013
Director of Body Imaging, Einstein Medical Center
Professor of Radiology, Jefferson Medical College
Etiology
 Blunt trauma accounts 80%–90% of all cases, withmotor vehicle accidents being most common cause
Gunshot wounds may cause blast affect withcavitation and necrosis
less common causes include
(a) direct blow to flank or abdomen during anassault, fight, sports activity (eg, bicycling,horseback riding)
(b) fall from a height.
Alonso, etal. RadioGraphics 2009; 29:2033–2053
CT of Renal Trauma
Injury is common but 95% minor
Hematuria in 95% with renal trauma
Renal pedicle or vein injury may have nohematuria
Initial imaging @ 70-80 sec for vascularenhancement and nephrogram
Delayed images (3-5 min) to check for urineleak
American Association of SurgicalTrauma
Grade 1- contusion, subcapsular hematoma
Grade 2- non expanding perirenal hematoma, smalllaceration
Grade 3- renal laceration > 1 cm
Grade 4- renal laceration extending to collecting system,injury involving renal artery or vein with containedhematoma
Grade 5- shattered kidney, UPJ avulsion, vascularavulsion
CT Findings of Renal Injuries
Contusions: patchy areas of decreasedenhancement, striated nephrogram
Lacerations: irregular, linear, low-attenuation
Fracture: a laceration through hilum
Subcapsular hematoma: low attenuationcrescent, compressing parenchyma
Arterial injuries: main, segmental
Venous injuries: persistent nephrogram
Collecting system injuries: initial waterdensity, delayed extravasation dense urine
2
1
SubcapsularHematoma: Grade 1
Elevated RI L Kidney
8 2 days later with contrast
Normal Doppler R kidney
2 days later
Hematoma compresseskidney causing delayednephrogram andelevated resistive index
late
early
Initial                                                 Delayed
Striated nephrogram, perinephric hematoma
Grade 2 injury
1
3
Full thickness laceration, clot in renal pelvisbut no collecting system injury, perinephrichematoma: Grade 3
Renal laceration -right w collecting system extravasation-1
Renal laceration -right w collecting system extravasation-2
Renal laceration -right w collecting system extravasation-3
Initial
Delayed
Grade 4:
Laceration of kdney involvingrenal pelvis with urineextravasation and  retroperitonealhematoma
Renal laceration w collecting system extravasation-1
Renal laceration w collecting system extravasation-2
Renal laceration w collecting system extravasation-3
Renal lacerations with
 hematoma:
 initial imaging
Renal laceration w collecting system extravasation-4
Renal laceration w collecting system extravasation-5
Injuries to collectingsystem
 with extravasation: Grade 4
Delayed imaging
Renal laceration w collecting system extravasation-6
Renal laceration w collecting system extravasation-7JPG
Retrograde study, stent placement
Renal laceration w collecting system extravasation-8
Renal laceration w collecting system extravasation-9
IVU several weeks later with healed,intact collecting system
nephrogram
pyelogram
Subtle CollSysLeak-1
Initial image with slightly delayed left
 nephrogram, perinephric fluid andnon occlusive renal vein thrombus
Subtle CollSysLeak-2
Renal pelvis injury: Grade 4
Delayed imaging
Renal pedicle injury-1
Renal pedicle injury-2
Renal pedicle injury: Grade 5
Non functioning right kidney with injuries to arteryand vein
late
early
Post exploratory laparotomy: Early                              Late
Acute vascular extravasation: Grade 5
4d later urogram
4d later
Healed spontaneously, mildly delayednephrogram and pyelogram
4 days later
RA inury upper pole
early study, urine extrav
1. Partial main renal arteryinjury
2. Presumed avulsion lowerpole renal artery
3. Collecting System injury
Grade 5
Prob avul LP renal art
Prob avul LP renal art
2 mos later, cap rim sign, cor
2 mos later, cap rim sign, varices
2 months later
Delayed function upper pole, infarctedlower pole with capsular rim sign andretroperitoneal collaterals
Shattered kidney: Grade 5
Early phase CT 1.jpg
Renal cyst w hemorrhage-1
Renal cyst w hemorrhage-2
Initial study
Trauma related to pre-existing pathology
One day later
1 acc 7180047.jpg
Hemorrhageinto cyst
Rupture bilateral renal cysts
CT1
CT2
CT 1 week later-1
CT 1 week later-3, more blood
Increasing painseveral days later
New Hemorrhage
Initial study with renalcontusion
Selective Injection w PSA
Initial flush aortogram
Initial flush aortogram delayed focal abn
Post Coils Injection
Post traumatic pseudoaneurysm treated with embolization
acc sup RRA thrombosed w infarct.jpg
RKID missed extrav.jpg
Initial                                                        Delayed
FU RKID.jpg
FU R Kid 2 mos later.jpg
1 week later
2 months later
Ureteral injury
Parenchymal scarring
1 acc 6712255.jpg
2 excretory phase sag.jpg
axial excet.jpg
Follow up CT Urogram after renal trauma
Psoas urinoma and uretero-colic fistula
Complications
Occur in 3%–33% of all cases of renal trauma
Early complications develop within first month andinclude urinary extravasation with urinoma formation,infected urinoma, perinephric abscess, sepsis, anddelayed bleeding secondary to arteriovenous fistula orpseudoaneurysm
Late or delayed complications develop more than 4 weeksafter injury and in-clude hypertension, hydronephrosis,calculus and chronic pyelonephritis
Posttraumatic renovascular hypertension may occuranywhere from a few weeks to decades following injury,but on average occurs within 34 months
Rt adrenal gl
cor
AdrenalHematomas
L adrenal hemorrhage
Two different patients
Adrenal Trauma
Adrenal injuries in 1.9% of thoseundergoing CT
Hematoma (obscured gland), activeextravasation
May need follow-up to rule out a trueadrenal mass
These patients had other severe injuriesassociated with a higher mortality
Rana. Rad 2004;230:669-675
CT of Bladder Injuries
70% associated with pelvic fractures
Add on CT cystogram if bladder isnot distended at time of initial scan
1.  ~ 350 mL of 5% contrast materialinstilled via Foley
2.  Evaluate urethra before Foleyplacement as necessary
CT Findings of Bladder Injuryon Cystogram
Contusion - focal thickening, variableattenuation
Rupture - extravasation
1.Extraperitoneal - peri/prevesical,anterior abdominal wall, thigh, penis,scrotum
2.Intraperitoneal - pericolic gutters,around bowel loops, pouch of Douglas
Cystogram
No extravasation, minor contusion
CT cystogram in patient with pelvic fractures
CT Cystog 2
1
2 early
CT Cystog 1
Extra Peritoneal Bladder Tear
Initial CT
CT Cystogram
3
1
2
Pelvic Fractures
CT Cystogram: Extraperiteonal Bladder Tear
P1010023
P1010022
P1010026
P1010025

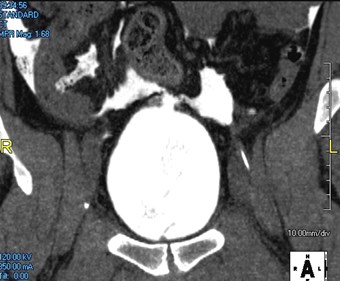

CT Cystogram: Intraperitoneal Bladder Tear
routine CT, bladder dome irreg.jpg
routine CT, cor bladder wall thickening.jpg
CT with liver and bowel injuries went to OR
CT cysto ax contrast between loops.jpg
CT cysto ax w post dome defect.jpg
CT cysto cor.jpg
Intraperitoneal Bladder Tear
Post operative imaging
routine CT, cor bladder wall thickening.jpg
P1010066
Intra and extra peritoneal bladder rupture
Normal male urethral anatomy in the sagittal plane.
Ingram M D et al. Radiographics 2008;28:1631-1643
1 acc 6744607.jpg
2 pelvic fx.jpg
Pelvic Fractures

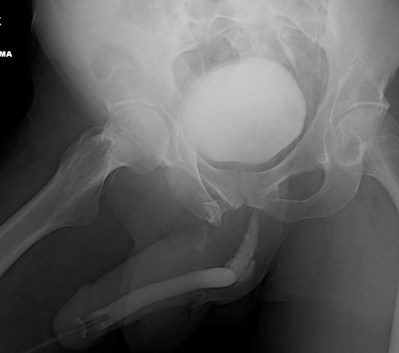

Retrograde Urethrogram
Grade 3 urethral injury: involves bulbar-membranous urethra
3 CT, urethral injury in retrospect.jpg
Initial CT
pelvic fxs 3.jpg
pelvic fxs 5.jpg
first CT coronal bladder elevated in pelvis.jpg
5 molar tooth hematoma.jpg
Pelvic fractures, molar tooth hematoma, bladder elevated out of pelvis
cysto early.jpg
cysto mid.jpg
cysto extrav at neck.jpg
Foley placed with difficulty, had post op cystogram
Bladder neck injury: Type 4
5 AP pelvis complete diastasis of symphysis.jpg
4 RUG.jpg
Injury to posterior urethra
3 skin leak and into scrotum.jpg
Combination urethral injury and
extra peritoneal bladder tear with
extravasation throughoutperineum, soft tissues, thigh andskin
Urethral Injuries
Majority occur in posterior urethra
MVC, falls
Bladder injuries in 20%
Approximately 1/3 anterior urethra
Usually related to straddle injuries
Very rare in female urethra
Suspicious signs: blood at meatus, inability tovoid, pelvic/perineal hematoma
CT decreased rt perfusion
comparison color
Testicular Contusions
US comparison testes, R contusion
3
testicular contusion-1
Testicular Contusion
traumatic epididymitis-5
traumatic epididymitis-4
Epididymis injury with traumaticepididymitis
4
3
2
Intratesticular hematoma with rupture
Outcomes
Advances in staging techniques resulting from theincreased use of CT, increasing availability ofminimally invasive techniques such as angiographicembolization, and improvement of intensive care unitfacilities have resulted in increasing trend towardexpectant management
Surgical intervention now performed in only 5%–10%of renal injuries and continues to decline in frequencyof use
