Left to RightShunts
Left to RightShunts
© William Herring, MD, FACR
7 yo acyanotic female
What’s the diagnosis?
Atrial Septal Defect
Atrial Septal DefectFour Major Types
Ostium secundum
Ostium primum
Sinus venosus
Posteroinferior
Atrial Septal DefectGeneral
4:1 ratio of females to males
Most frequent congenital heart lesioninitially diagnosed in adult
Frequently associated with Ellis-vanCreveld and Holt-Oram syndromes
Associated with prolapsing mitral valve

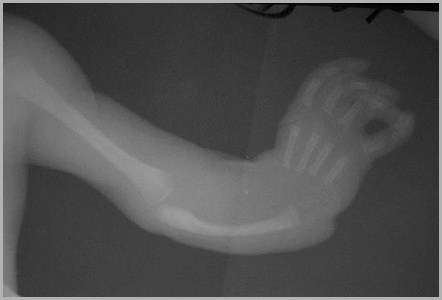

Holt-Oram Syndrome –Absence or hypoplasia of the radial ray
Atrial Septal DefectOstium Secundum Type
Most common is ostium secundum(60%) located at fossa ovalis
High association with prolapse ofmitral valve

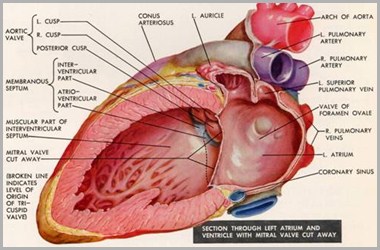

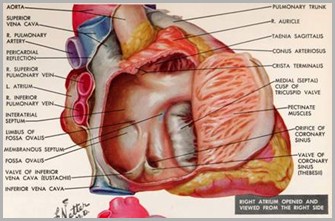

Right atrium open looking into leftatrium through ASD
Normal
© Frank Netter, MD Novartis®
Atrial Septal DefectOstium Primum Type
Ostium primum type usually part ofendocardial cushion defect
Frequently associated with cleftmitral and tricuspid valves
Tends to act like VSD physiologically

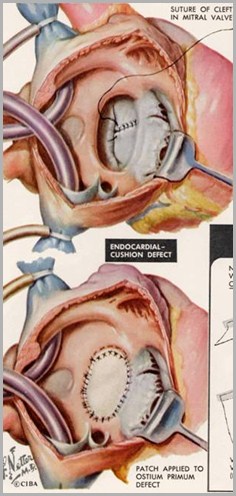

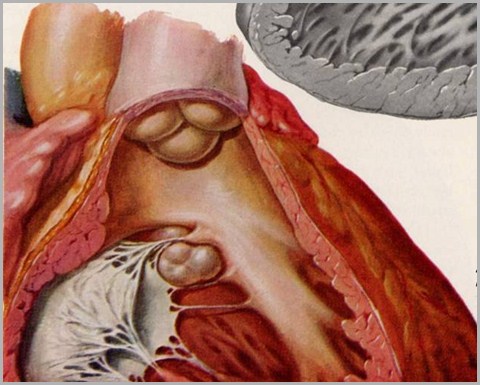

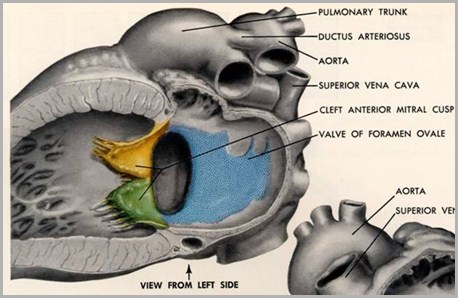

Looking throughostium primum defectat cleft mitral valve
Proximity of ostiumprimum defect totricuspid valve
© Frank Netter, MD Novartis®
Atrial Septal DefectSinus Venosus Type
Sinus venosus type located high ininter-atrial septum
90% association of anomalous drainageof R upper pulmonary vein with SVCor right atrium
Partial anomalous pulmonary venous return

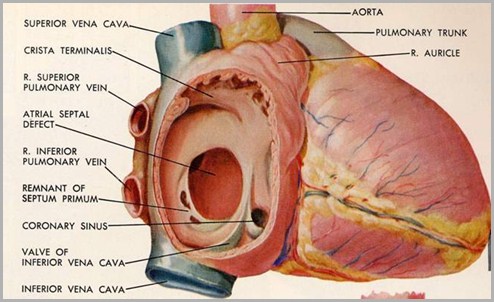

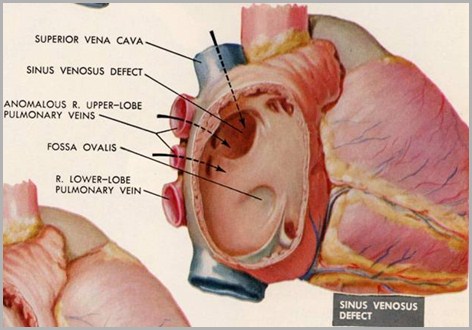

Right atrium open looking into left atrium through ASD
© Frank Netter, MD Novartis®
Atrial Septal DefectPosteroinferior Type
Most rare type
Associated with absence of coronarysinus and left SVC emptying into LA
Atrial Septal DefectPulmonary Hypertension
Rare in ostium secundum variety (<6%)
Low pressure shunt from LA RA
More common in ostium primum variety
Behaves physiologically like VSD

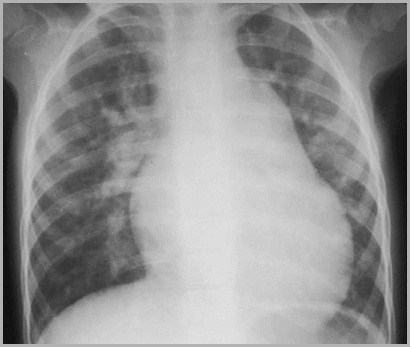

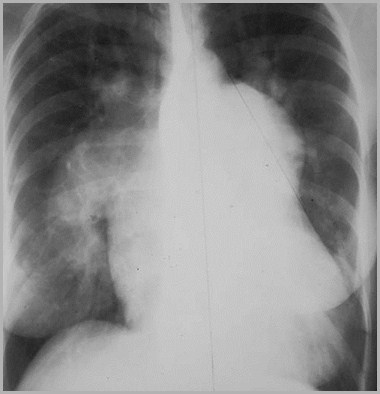

37 yo female with severe PAH 2°ostium primum type of ASD

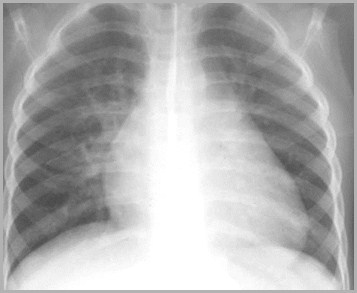

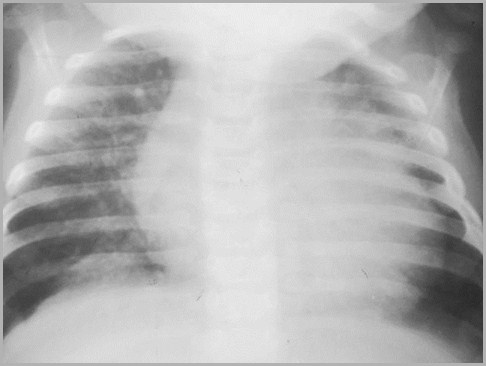

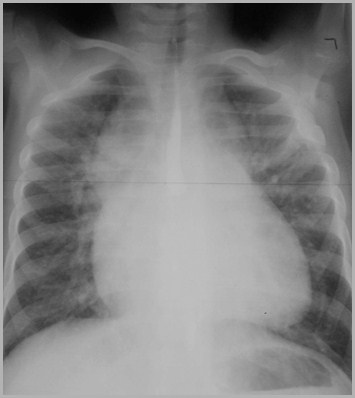

Atrial Septal DefectX-Ray Findings
Enlarged pulmonary vessels
Normal-sized left atrium
Normal to small aorta

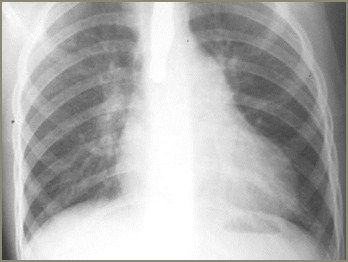

ASD
Prominentpulmonaryvessels
ProminentMPA
Normal leftatrium
Atrial Septal DefectComplications
Large shunts associated with
Pulmonary infections and cardiac arrythmias
Higher incidence of pericardial diseasewith ASD than any other CHD
Bacterial endocarditis is rare
LA
Ao
ASD
PDA
VSD
Differentiating ASD, PDA and VSD
Atrial Septal DefectWhy the Left Atrium Isn’t Enlarged
LA
RA
RV
LV

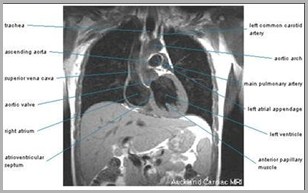

Ostium SecundumASD
Amersham

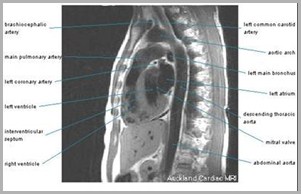

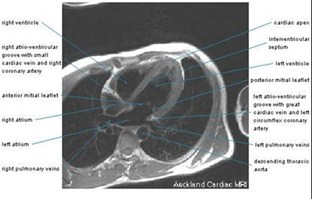

Auckland MRI

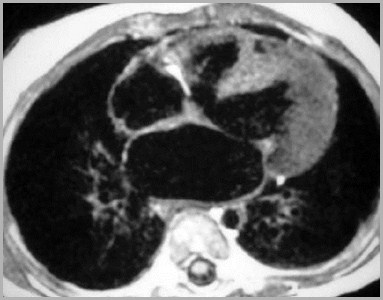

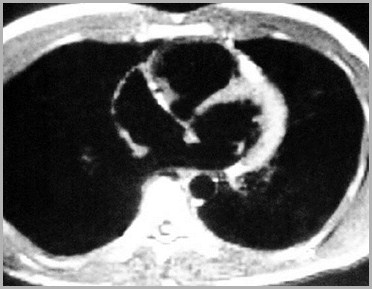

• Discontinuity in the atrial septum with systolic signal void consistent with L->R shunton atrial level
• Right atrium is mildly dilated; RV, LV and LA size are normal

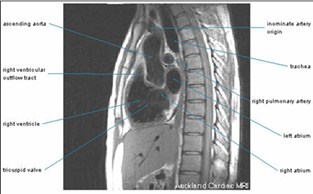

SCMR

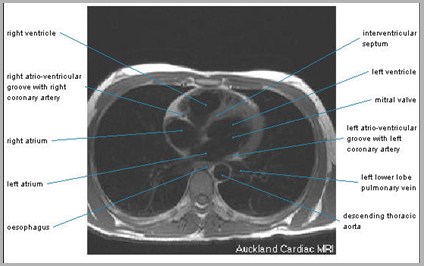

Auckland MRI
1 yo acyanotic female
What’s the diagnosis?
Ventricular SeptalDefectVentricular SeptalDefect
Ventricular Septal DefectGeneral
Most common L R shunt
Shunt is actually from left ventricle intopulmonary artery more than into rightventricle
Ventricular Septal DefectTypes
Membranous
Supracristal
Muscular
AV canal
Ventricular Septal DefectMembranous
Membranous = perimembranous VSD(75-80%–most common)
Location: Posterior and inferior tocrista supraventricularis near rightand posterior (=non-coronary) aorticvalve cusps
Associated with: small aneurysms ofmembranous septum

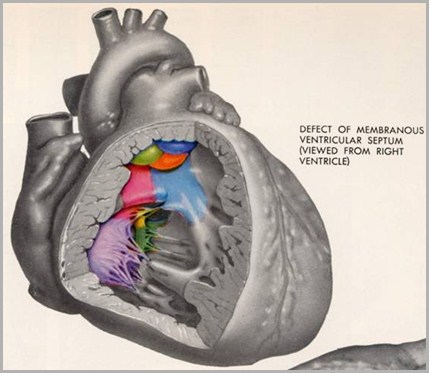

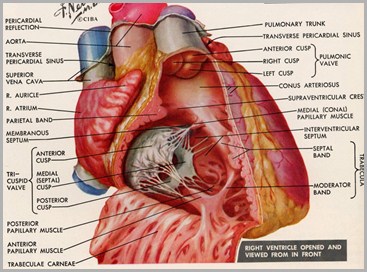

Right ventricle opened
Cristasupraventricularis
Membranous VSD
Normal
© Frank Netter, MD Novartis®
Aneurysm ofmembranousseptum
Normal
© Frank Netter, MD Novartis®
Ventricular Septal DefectSupracristal
Supracristal = conal VSD (5%–leastcommon)
Crista supraventricularis= inverted U-shaped muscular ridge posterior andinferior to the pulmonic valve high ininterventricular septum
Right aortic valve cusp may herniate aortic insufficiency
Ventricular Septal DefectMuscular
Muscular VSD (5–10%)

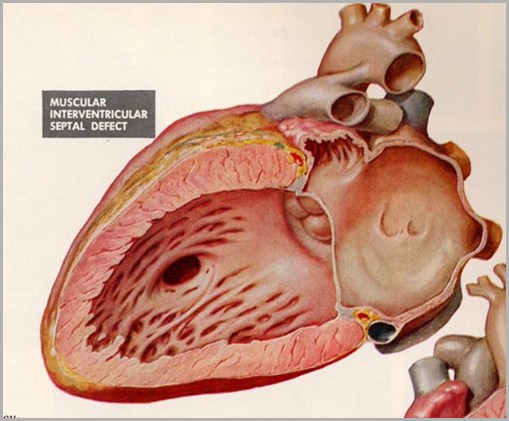

Low and anterior within trabeculationsof muscular septum
May consist of multiple VSDs = “Swiss-cheese septum”
Swisscheese
© Frank Netter, MD Novartis®
Ventricular Septal DefectAV Canal
Atrioventricular canal = endocardialcushion type = posterior VSD (5–10%)
Location: adjacent to septal andanterior leaflet of mitral valve
Large VSD pulmonary hypertension,eventually shunt reversal
Eisenmenger’s physiology
Very large VSD CHF soon after birth
Large posterior VSD(AV canal)
© Frank Netter, MD Novartis®
Ventricular Septal DefectNatural History
Natural history of VSD is affected bytwo factors:
Location of defect
Muscular and perimembranous have highincidence of spontaneous closure
Endocardial cushion defects have low rate ofclosure
Ventricular Septal DefectNatural History
Size of the defect
Larger the defect, more likely to CHF
Smaller the defect, more likely to beasymptomatic
Ventricular Septal DefectEisenmenger Physiology
Progressive increase in pulmonaryvascular resistance
Intimal and medial hyperplasia
Reversal of L R shunt to R L shunt
Cyanosis
Serial chest x-rays may showdecrease in size of pulmonary vessels
Ventricular Septal DefectClinical Course
Neonates usually asymptomaticbecause of high pulmonary vascularresistance from birth to 6 weeks
Common cause of CHF in infancy
Bacterial endocarditis may develop
Severe pulmonary hypertension Eisenmenger’s physiology/cyanosis

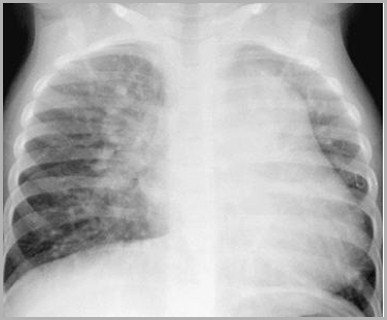

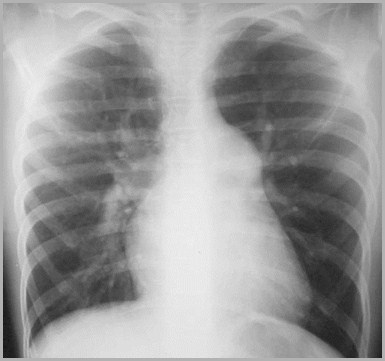

Ventricular Septal DefectX-ray Findings
Prominent main pulmonary artery
Adult
Shunt vasculature (increased flow tothe lungs)
LA enlargement (80%)
Aorta normal in size
LA
RA
RV
LV
Ventricular Septal DefectWhy Left Atrium Is Enlarged
VSD
Ventricular Septal DefectPrognosis
Spontaneous closure occurs in40% during first 2 years of life
60% by 5 years
Ventricular Septal DefectIndications For Surgery
Greater than 2:1 shunt, surgery requiredbefore pulmonary arterial hypertensiondevelops
CHF unresponsive to medical management
Failure to grow
Supracristal defects because of theirhigh incidence of AI
Amersham
Membranous VSD
Auckland MRI
8 mos old acyanotic female
What’s the diagnosis?
Patent DuctusArteriosusPatent DuctusArteriosus
Patent Ductus ArteriosusGeneral
Higher incidence in
Trisomy 21
Trisomy 18
Rubella
Preemies
Predominance in females 4:1

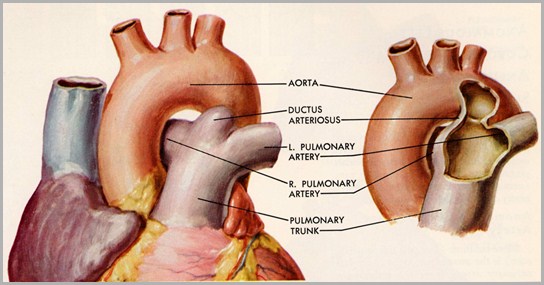

Patent Ductus ArteriosusAnatomy
Ductus connects pulmonary artery todescending aorta just distal to leftsubclavian artery
Ductus Arteriosus
© Frank Netter, MD Novartis®
Ductus ArteriosusPhysiology
In fetal life, shunts blood frompulmonary artery to aorta
At birth, increase in arterial oxygenconcentration constriction ofductus
Ductus ArteriosusNormal Closure
Functional closure
By 24 hrs of life
Normal anatomic closure
Complete by 2 months in 90%
Closure at 1 year in 99%
Patent Ductus ArteriosusPathophysiology
Ductus may persist
Because of defect in muscular wall of ductus, or
Chemical defect in response to oxygen
Anatomic persistence of ductusbeyond 4 months is abnormal
Blood is shunted from aorta topulmonary arteries
Patent Ductus ArteriosusClinical
Common cause of CHF in prematureinfants
Usually at age 1 week (after HMD subsides andpulmonary arterial pressure falls)
Wide pulse pressure
Continuous murmur
Patent Ductus ArteriosusX-ray Findings
Cardiomegaly
Enlarged left atrium
Prominent main pulmonary artery (adult)
Prominent peripheral pulmonary vessels
Prominence of ascending aorta
PDA
Patent Ductus ArteriosusWhy Left Atrium Is Enlarged
LA
RA
RV
LV
Patent Ductus ArteriosusCalcifications
Punctate calcification at site of closedductus is normal finding
Linear or railroad track calcification atsite of ductus may be seen in adultswith PDA
Patent Ductus ArteriosusPrognosis
Spontaneous closure may occur
Patent Ductus ArteriosusComplications
CHF
Failure to grow
Pulmonary infections
Bacterial endocarditis
Eisenmenger’s physiology with advancedlesions

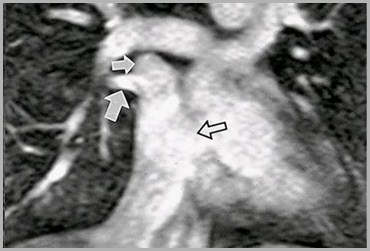

• Jet of signal loss showing continuous flow from the aorta to the MPAconsistent with sizeable PDA
• MPA is severely dilated at level of PDA
SCMR
Auckland MRI
Auckland MRI
2 yo old cyanotic female
What’s the diagnosis?
Partial or TotalAnomalous PulmonaryVenous ReturnPartial or TotalAnomalous PulmonaryVenous Return
Cyanosis With IncreasedVascularity
Truncus types I, II, III
TAPVR
Tricuspid atresia*
Transposition*
Single ventricle
* Also appears on DDx of Cyanosis with Inc Vascularity
CHF In NewbornImpede Return of Flow to Left Heart
Infantile coarctation
Congenital aortic stenosis
Hypoplastic left heart syndrome
Congenital mitral stenosis
Cor triatriatum
Obstruction to venous return fromlungs
TAPVR from below diaphragm
Two Types
Partial (PAPVR)
Mild physiologic abnormality
Usually asymptomatic
Total (TAPVR)
Serious physiologic abnormalities
Normal heart
Return ofblood fromlungs is byfour pulmonaryveins to LA
RA
LA
RV
LV
PA
Ao
PAPVRGeneral
One or two of four pulmonary veins maydrain into right atrium
Mild or no physiologic consequence
Associated with ASD
Sinus venosus or ostium secundum types
Partial Anomalous Pulmonary Return
Return ofblood fromlungs is mostlyto LA
One veinabnormallyconnected toright heart
Frequentlyassociated withsinus venosusor secundumASD
RA
LA
RV
LV
PA
Ao
PAPVR

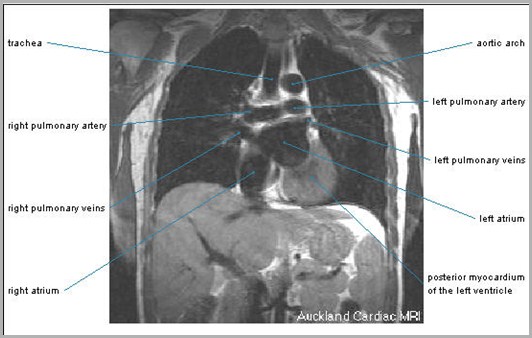

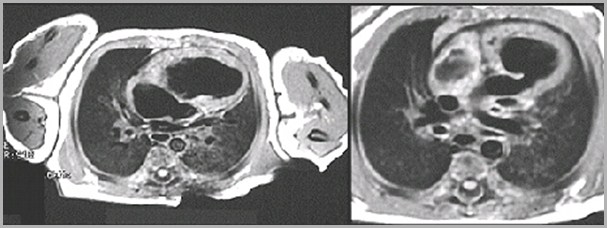

Auckland MRI
Korean Journal of Radiology
TAPVRGeneral
All have shunt through lungs R heart
All must also have R L shunt forsurvival
Obligatory ASD to return blood to the systemicside
All are cyanotic
Identical oxygenation in all four chambers
TAPVRTypes
Supracardiac
Cardiac
Infracardiac
Mixed
TAPVRSupracardiac Type—Type I
Most common (52%)
Pulmonary veins drain into verticalvein (behind left pulmonary artery)left brachiocephalic vein SVC
DDx: VSD with large thymus
Leftsuperiorvena cava
Rightsuperiorvenacava
Left Brachiocephalic vein
Verticalvein

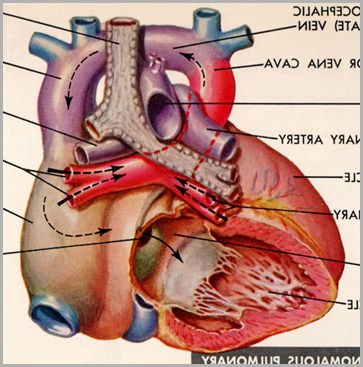

TAPVR-Supracardiac Type 1
Pulmonaryveins
Rightatrium
© Frank Netter, MD Novartis®
TAPVR-SupracardiacType 1
© Frank Netter, MD Novartis®

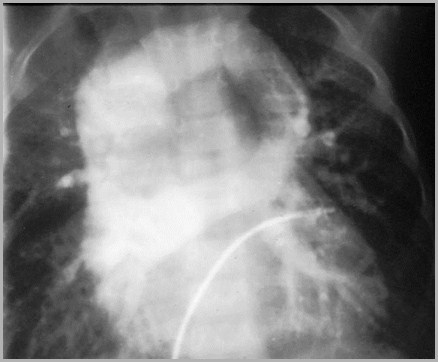

TAPVRSupracardiac Type 1—X-ray Findings
Snowman heart = dilated SVC+ leftvertical vein
Shunt vasculature 2° increased returnto right heart
Enlargement of right heart 2° volumeoverload
TAPVR-Supracardiac Type 1
RA
LA
RV
LV
PA
Ao
TAPVR–Type I–Supracardiac type
Blood movesthrough Lbrachiocephalic vto R SVC
Blood fromlungs drainsinto left verticalveinto L SVC
Increasedreturn to rightheart overloadslungs shunt vessels
ASD provides R L shunt toallowoxygenatedblood to reachbody (moderatecyanosis)
TAPVRCardiac Type—Type II
Second most common: 30%
Blood from lungs coronary sinus or RA
Coronary sinus more common
Overload of RV CHF after birth
Increased pulmonary vasculature
20% of I’s and II’s survive to adulthood
Remainder expire in first year

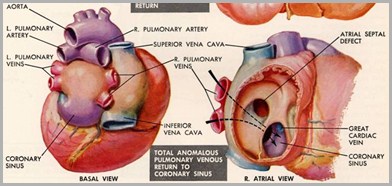

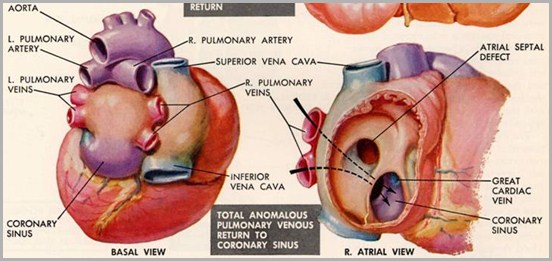

TAPVR-Coronary Sinus-Type II
Coronarysinus
© Frank Netter, MD Novartis®
TAPVR
© Frank Netter, MD Novartis®
Pulmonary veins
TAPVR–Type II–Cardiac Type
Blood returnsfrom lung to RAor coronary sinus
ASD provides R L shunt toallowoxygenatedblood to reachbody (moderatecyanosis)
Increasedreturn to rightheartoverloadslungs shunt vessels
RA
LA
RV
LV
PA
Ao
TAPVRInfracardiac Type—Type III
Percent of total: 12%

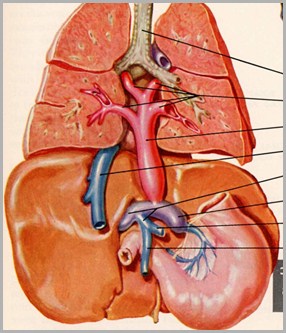

Long pulmonary veins course downalong esophagus
Empty into portal vein (morecommon) or IVC
Vein constricted by diaphragm as itpasses through esophageal hiatus

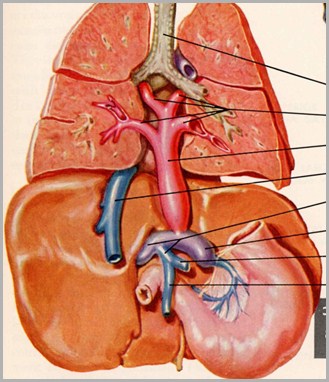

TAPVR-Type III-Infradiaphragmatic
Portal vein
Pulmonaryveins
© Frank Netter, MD Novartis®
TAPVRInfracardiac Type—Continued
Severe CHF (90%) 2° obstruction tovenous return
Cyanotic 2° right left shuntthrough ASD
Associated with asplenia (80%), orpolysplenia
Prognosis=death within a few days
TAPVR–Type III–Infracardiac type
ASD providesR L shunt toallowoxygenatedblood to reachbody (cyanotic)
CHF vasculature
RA
LA
RV
LV
PA
Ao
Blood returningfrom lungs pulmonary veinswhich areconstricted bydiaphragm CHF
To portal v IVC RA
TAPVRMixed Type—Type IV
Percent of total: 6%
Mixtures of types I – III
TAPVR
© Frank Netter, MD Novartis®
University of Minnesota
The End
