Calcaneal Stress Fracture




General Considerations

  • Overuse injury seen in athletes, especially with running and aerobics, and military recruits
  • Most stress fractures are in lower extremities
  • Repetitive compressive loading

Clinical Findings

  • Increasing pain in the heel with exercise or activity
  • Tenderness to palpation over outer aspects of the heel
  • Pain may decrease or disappear with rest

Imaging Findings

  • Stress fractures may take up to 7-14 days to appear on conventional radiographs
  • Most occur in posterior half of calcaneus
  • Vertically oriented zone of increased density on lateral radiograph
  • Perpendicular to the trabecular lines
  • Usually oriented parallel to the curve of the posterior calcaneus
  • Fracture line usually disappears by 6 weeks
  • Radionuclide bones cans may be positive (increased uptake) within 72 hours
  • On MRI
    • Low signal on both T1 and T2
    • Surrounding marrow edema will show high signal
    • May be particularly helpful in setting of marked osteoporosis

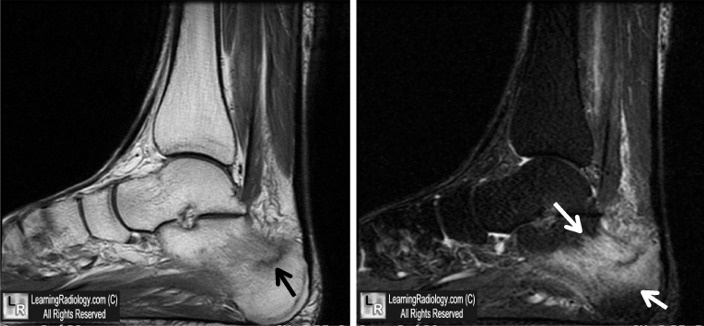

MRI calcaneal stress fracture

T1 (left) and STIR MRI images show a stress fracture of the calcaneus (black arrow)
and the surrounding edema (white arrows)in another patient.

Differential Diagnosis

  • Heel pain may clinically be caused by plantar fasciitis

Treatment

  • Avoiding aggravating activities like running for 4-8 weeks
  • Cushioning of the heel
  • Rarely, surgery

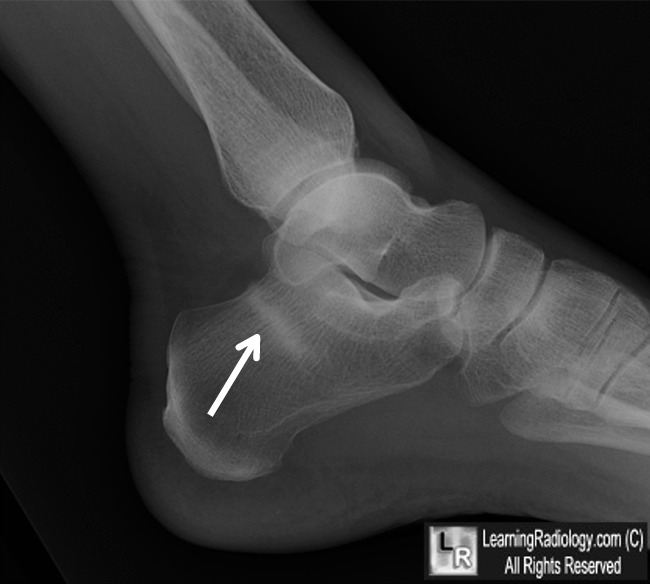

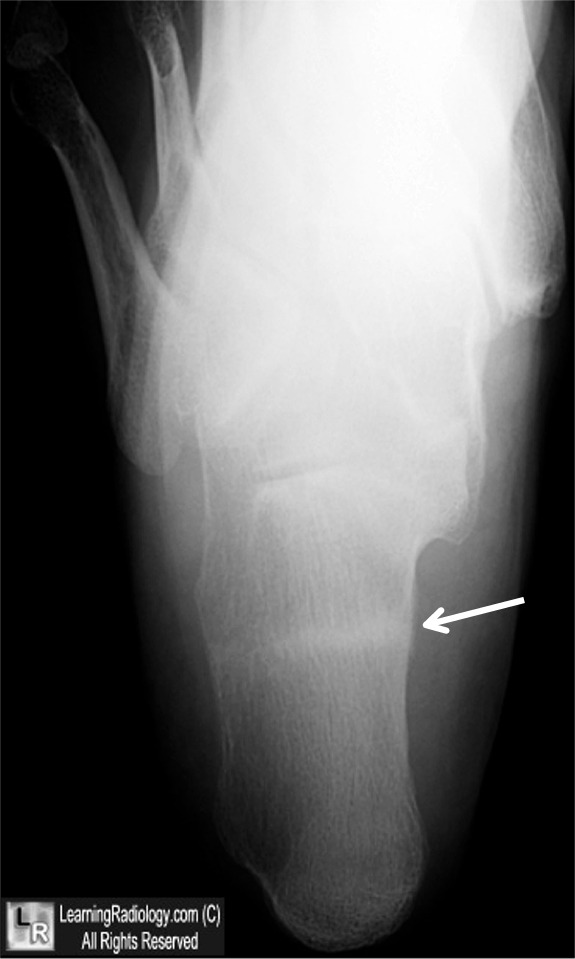

Stress Fracture of the Calcaneus. Lateral view of calcaneus shows characteristic vertically-oriented dense band of sclerosis in calcaneus (white arrow), perpendicular to the orientation of the trabeculae. Lower tangential view also shows dense band of sclerosis (white arrow)
For these same photos without the arrows, click here and here
For more information, click on the link if you see this icon



Stress Fractures of the Calcaneus. JW Leabhart. The Journal of Bone and Joint Surgery; Vol L. 41-A, NO. 7, Oct 1959
