Thyroid Acropachy

General Considerations

  • One of the extra-thyroidal manifestations of autoimmune thyroid disease
  • Occurs in about 1% of patients with Grave’s Disease
  • Almost always associated with ophthalmopathy
  • May be associated with thyroid dermopathy (myxedema)
  • Chronology of findings is usually thyroid dysfunction, ophthalmopathy, dermopathy and then acropachy
  • Most patients are also smokers
  • Can occur in both euthyroid and hypothyroid patients and usually follows the manifestations of thyroid dysfunction itself
    • May occur after radioactive treatment for hyperthyroidism

Clinical Findings

  • Asymptomatic in most patients
  • Clubbing
  • Swelling of the fingers and toes
  • Joint pain, especially small joints
  • High thyroid stimulating antibody titers

Imaging Findings

  • Clubbing of the fingernails and toenails
  • Swelling of the fingers and toes
  • Solid periosteal new bone formation
    • May be thin or thick
    • Sometimes spiculated or lacy in appearance
    • Involves the metacarpals, proximal and middle phalanges of the hand, metatarsals and proximal phalanges of the toes
  • Usually bilateral and symmetric, but may be asymmetric, sometimes involving a single digit
  • Radionuclide bone scans may show radiotracer uptake before findings visible on conventional radiographs

Differential Diagnosis

  • Hypertrophic osteoarthropathy
    • Usually involves long bones, but spares the ends
    • Symmetric
  • Pachydermoperiostitis
    • Idiopathic variety of hypertrophic osteoarthropathy
    • Younger
    • Involves forearm, tibia and fibula
    • Does not spare the ends of bones
  • Hypervitaminosis A
    • Generalized periostitis


  • Immunosuppressive therapy and steroid administration for thyrotoxicosis


  • Remission of findings may occur in long-term

thyroid acropachy

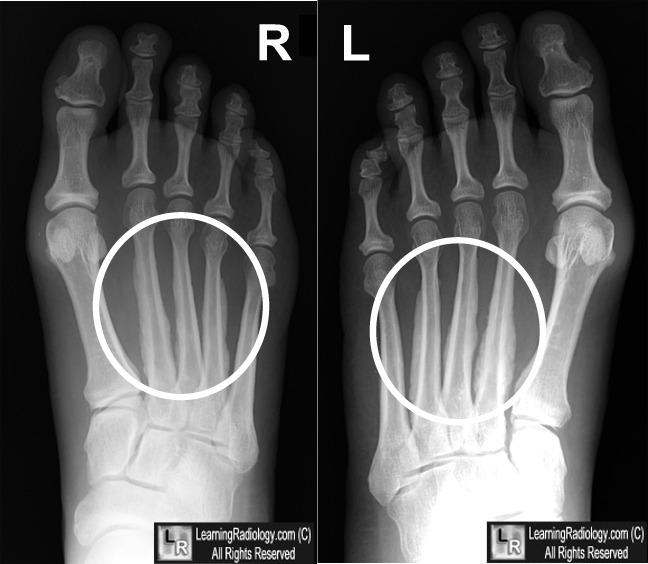

Thyroid Acropachy. Thick, wavy periosteal reaction is seen along the shafts
of the 1st through 4th metatarsals bilaterally (white circles).

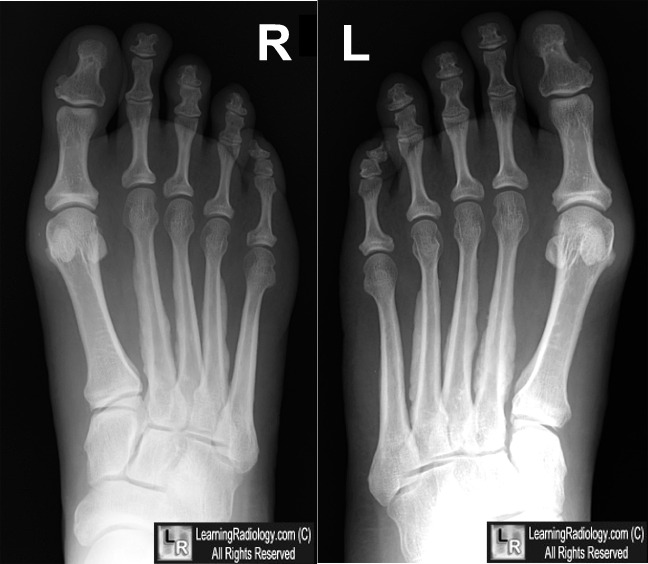

For this same photo without the arrows, click here
For more information, click on the link if you see this icon

Thyroid Acropachy: Report of 40 Patients Treated at a Single Institution in a 26-Year Period. V Fatourechi, DDF Ahmed, and KM Schwartz. The Journal of Clinical Endocrinology & Metabolism 87(12):5435–5441

Thyroid Acropachy. O Batal and SF. Hatem. Orthopedics January 2008;31(1):2.
