Left Ventricular Assist Device

General Considerations

  • Surgically implanted, mechanical circulatory assist device in patients with severe and medically refractory heart failure
  • Originally, these devices were used as a bridge to cardiac transplantation
  • LVAD are now used as a permanent alternative to heart transplantation (known as destination therapy)
  • It is estimated that 250,000 patients in US are in refractory heart failure and there are approximately 2,100 donor hearts available each year

Clinical Findings

  • Centers for Medicare & Medicaid Services guidelines for LVAD eligibility
    • End-stage heart failure patients who are not candidates for heart transplantation
    • Patients have received but failed to respond to optimal medical treatment for 45 of the last 60 days
    • Patients must have an LV ejection fraction of < 25%
    • Patients must have demonstrated functional limitation

Imaging Findings

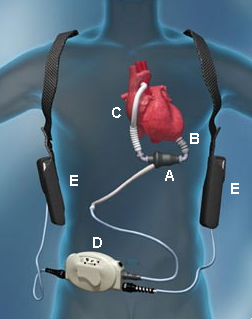

  • The device described here is the HeartMateÒ (See image below)
  • Implantation requires a median sternotomy and cardiopulmonary bypass
  • The pump is implanted in the preperitoneal space or peritoneal cavity below the heart (A)
    • It is a continuous flow pump with no pulsatile action; therefore the patient who receives such a device will have no palpable pulse
  • The inflow cannula is anastomosed to the tip of the left ventricle (B)
  • The outflow cannula is attached to the ascending aorta (C)
  • The controller (D) and battery (E) is worn externally, rechargeable and allows tether-free operation for about 3 hours
    • The unit can also run on AC power



  • Neurologic complications such as stroke, transient ischemic attack and toxic encephalopathy
  • Sepsis is the most common complication either from infection of the device or from other parts of the body
  • Device failure increases with time
  • Not necessarily related to the device itself. Other complications include
    • Right heart failure
    • Multiorgan failure


  • 1- and 2-year survival rates after LVAD implantation in the post-REMATCH era were 56% and 33%
  • The probability of device exchange or fatal device failure was 17.9% and 72.9% at 1 and 2 years, respectively

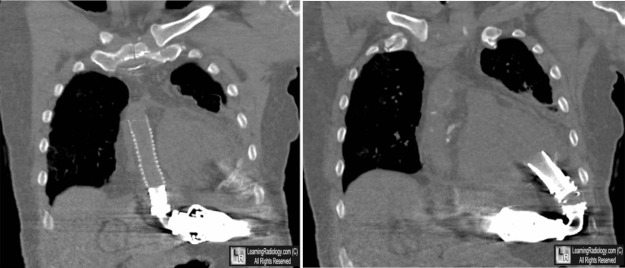

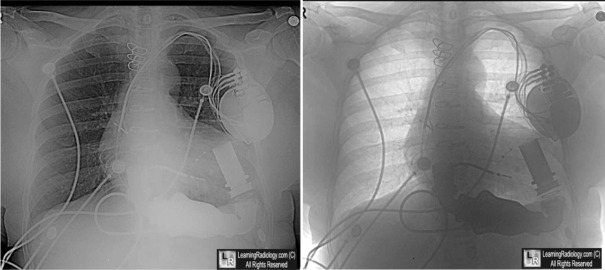

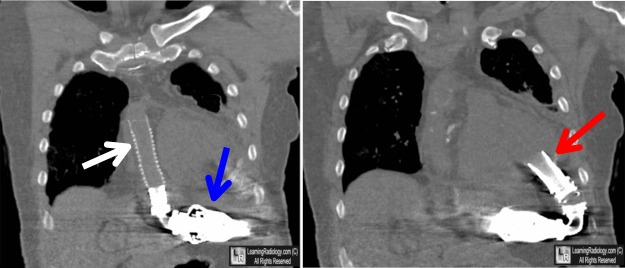

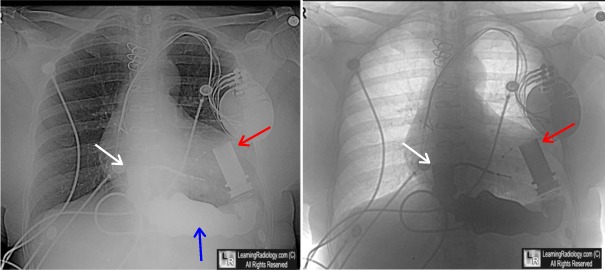

Above and below: Cannula for ascending aorta (white arrows); pump (blue arrow); LV cannula (red arrows)

For these same photos without the arrows, click here and here
For more information, click on the link if you see this icon
